High Performance Steel Drum Lock Ring Roll Forming Hoop Clamp Production Machine

Description

Working Process:

Decoiler—–Leveling—–Rolling Forming Machine—–Bending—–Set-to-length Cutting

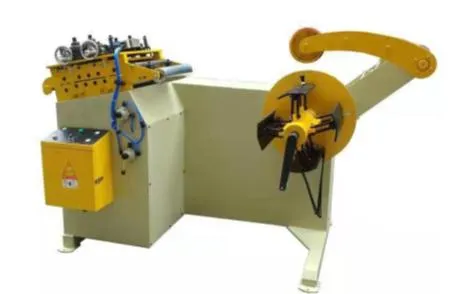

Automatic Decoiler

1. Loading weight: ≤1 or 2 tons

2. Speed: Customized

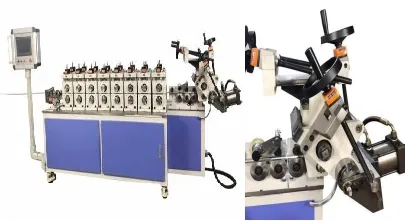

Type A- Clamp Metal Ring Rolling Forming Machine

1. Strip specification: (thickness) max 2.5mm; (width) max 80mm

2. Forming passes: 8; Pass spacing: 200mm
3. Cutting sharps and expanding(which could switch off separately).

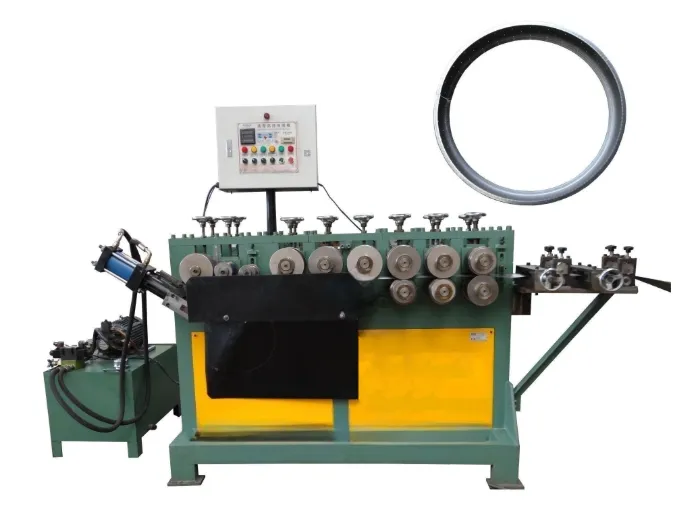

Type B- Clamp Metal Ring Rolling Forming Machine

1. Strip specification: (thickness) 1mm-3.0mm; (width) <60mm

2. Main forming wheel: 6 sets, made of Cr12mov, treated hardness
3. Efficiency: 13-15 m/min (customized)

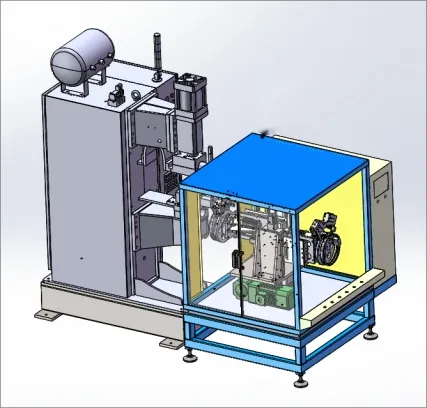

Double-head welding machine

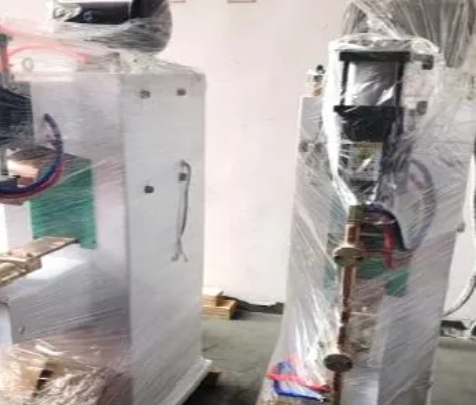

Spot welding machine

1. Loading positioning—Automatic welding—Unloading
2. Voltage: 380V, 50Hz(customized)
3. Welding tolerance: ±0.5mm

1. Rated power: 80KVA
2. Cooling method: water cooling
3. Control method: CNC box control

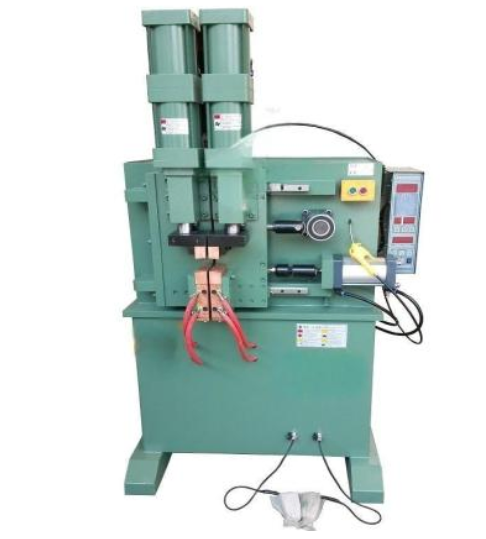

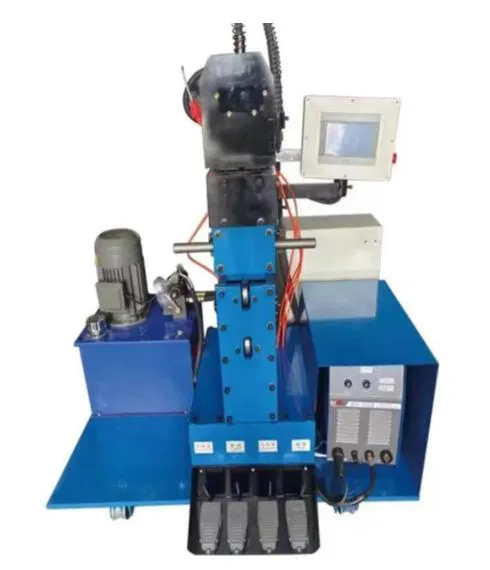

Butt welding machine(touch screen)

1.Welding method: tungsten arc welding, single-sided/double-sided forming

2.Welding gun travel accuracy: 0.1mm

Main forming wheels	Customized
Voltage	380V, 3Phase, 50Hz(Customized)
Roller mold material	Cr12Mov, heat treatment hardness
Width of Strip	max 80mm
Thickness of Strip	1.0-3.0mm
Speed	Adjustable
