20L-60L Auto Small Steel Drum Making Machines

Description

Description:

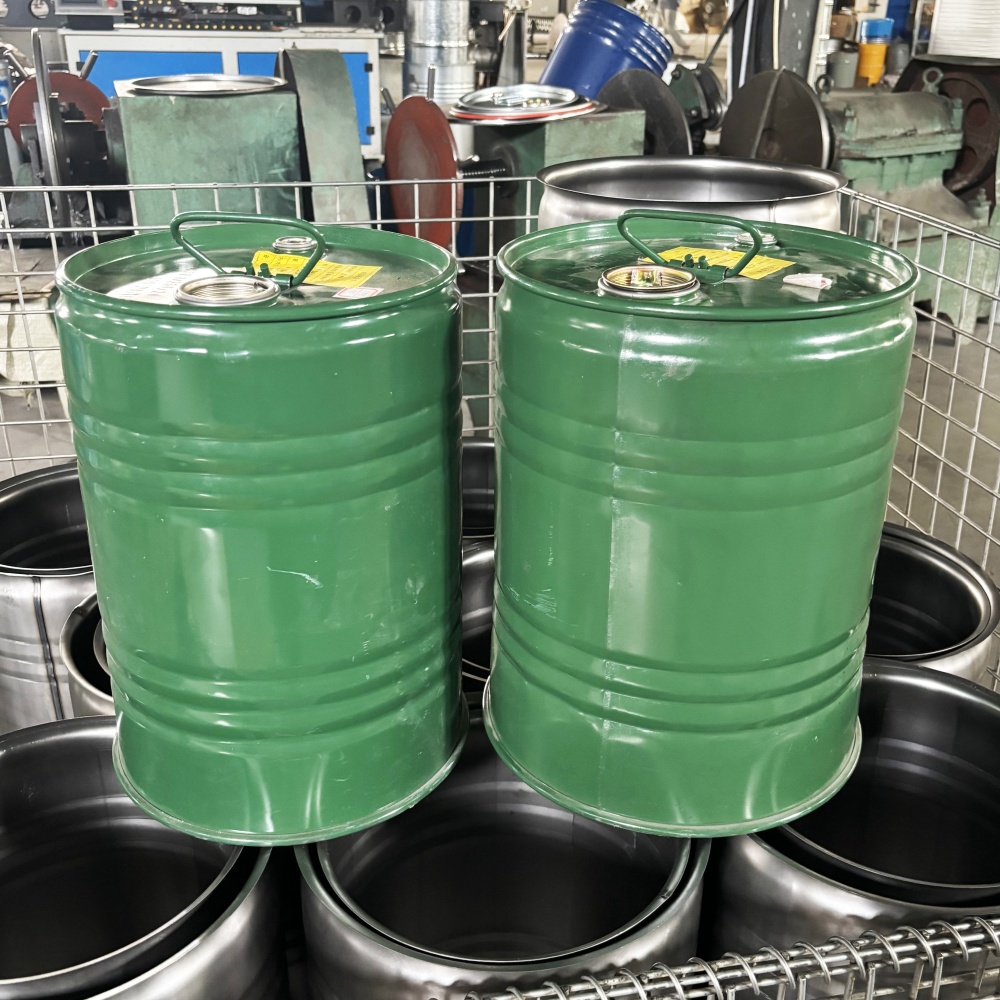

1. Steel barrel diameter: 362mm
2. Maximum barrel height: 656mm
3. Wall thickness: 0.5-0.6mm
4. Material: cold-rolled plate
5. Rib form: six ribs in total
6. Barrel style: closed neck barrel, open neck barrel, closed straight barrel, open straight barrel
Production process:
1. Loading and leveling--cutting and unloading
2. Automatic rolling and welding--flanging and rolling--rib expansion----closed barrel roller compression neck---open barrel roller compression neck----capping machine--reverse barrel inversion----bottom sealing----leakage test (sampling);
3. Stamping bottom cover----stamping large and small threads-----pre-rolling glue dripping
4. External spraying of barrel body + baking + secondary spraying + baking;
5. Internal spraying and capping-external spraying of barrel body + baking
Fully automatic seam welding machine
Transformer: 150KVA
Copper wire diameter: 2-2.4mm
Welding diameter: 362mm
Welding height: 700mm
Welding thickness: 0.5-0.6mm
Working air pressure: 0.6Mpa
Overlap: 3-4mm
Working air pressure: 0.6Mpa
Production efficiency: 10-15 pieces/min
Dimensions: 2700*1800*1800
Weight: 2700kg
Forming combination machine
(Flanging, curling, rib expansion, shrinking)
Equipment power: 30KW
Servo power: 3kw
Working efficiency: 10-15 pieces/min
Overall dimensions: 4500*1500*2650
Weight: 800KG
20L Small Oil Drum Steel Barrel Making Machine
