Conical Steel Drum Production Line

Description

Automatic Seam Welding Machine (8PCS/min, International Brand PLC)
The sheets are flipped into the machine and the edges of the sheet are placed on top of each other and carefully welded. The speed of this process is 8 Pcs/min.

1. Rated power: 550KVA (variable frequency, 250KVA at 100% duty cycle) three-phase 380 V(10-400 Hz adjustable)
2. Welding speed (Max): 16m/min
3. Productivity: 8 pcs/min
4. Inner diameter of welding barrel: φ560-φ571.5 mm
5. Welding barrel length (barrel height): <1000 mm
6. Weld seam overlap: 2.5-3.5mm (the thickness of the high temperature and wear-resistant inserts can be set)
7. Low carbon steel plate thickness: 0.6-1.5mm (long and short side tolerance within ±0.5, diagonal tolerance within ±1)
8. Compressed air pressure: 0.65 Mpa
9. Cooling water: 80 L/min 0.3Mpa (optional chiller)

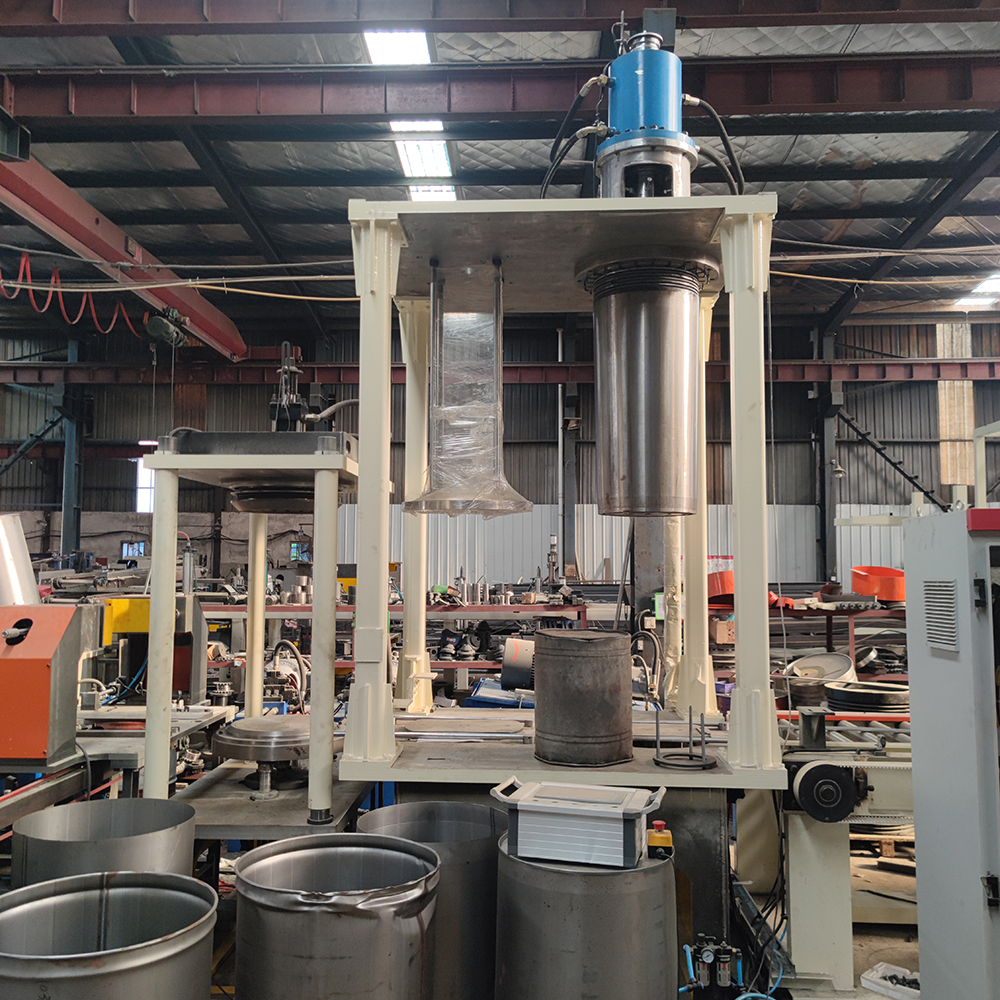

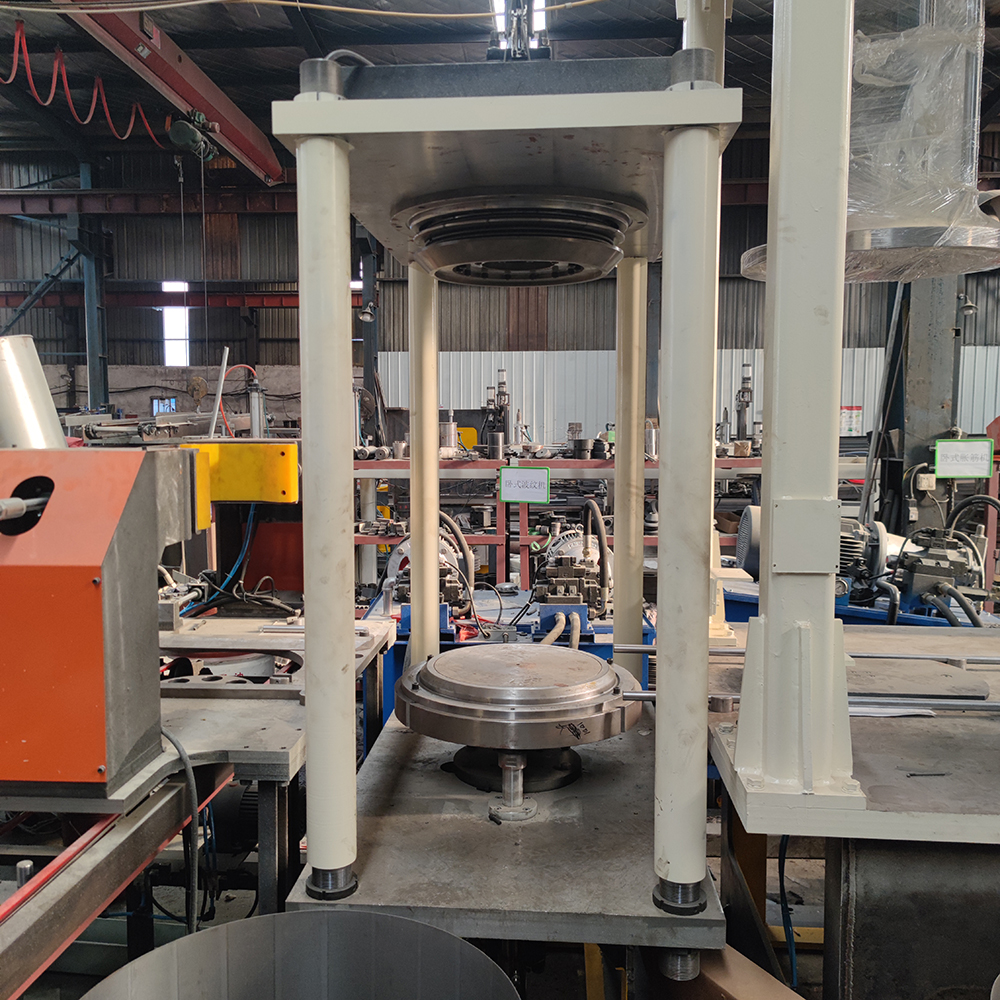

Vertical Flanging and Beading Machine
The conveying mechanism automatically feeds the drum body into the equipment. The equipment automatically detects the barrel body and lifts the barrel body to complete the flanging and beading process.

1. Equipment function: drum body reaches the required process size by flanging and beading
2. Equipment speed: 6-7 PCS/min
3. Total weight: about 5000KG
4. Total power: 22KW
5. Air source pressure: 0.6MPA
6. Power supply: 380V 3P+N+PE
7. Conical drum dimension: Adjustable height 850-1000mm; outer diameter 560-571.5mm
8. Bead depth: Adjustable
9. Center of beading from top: 45 mm

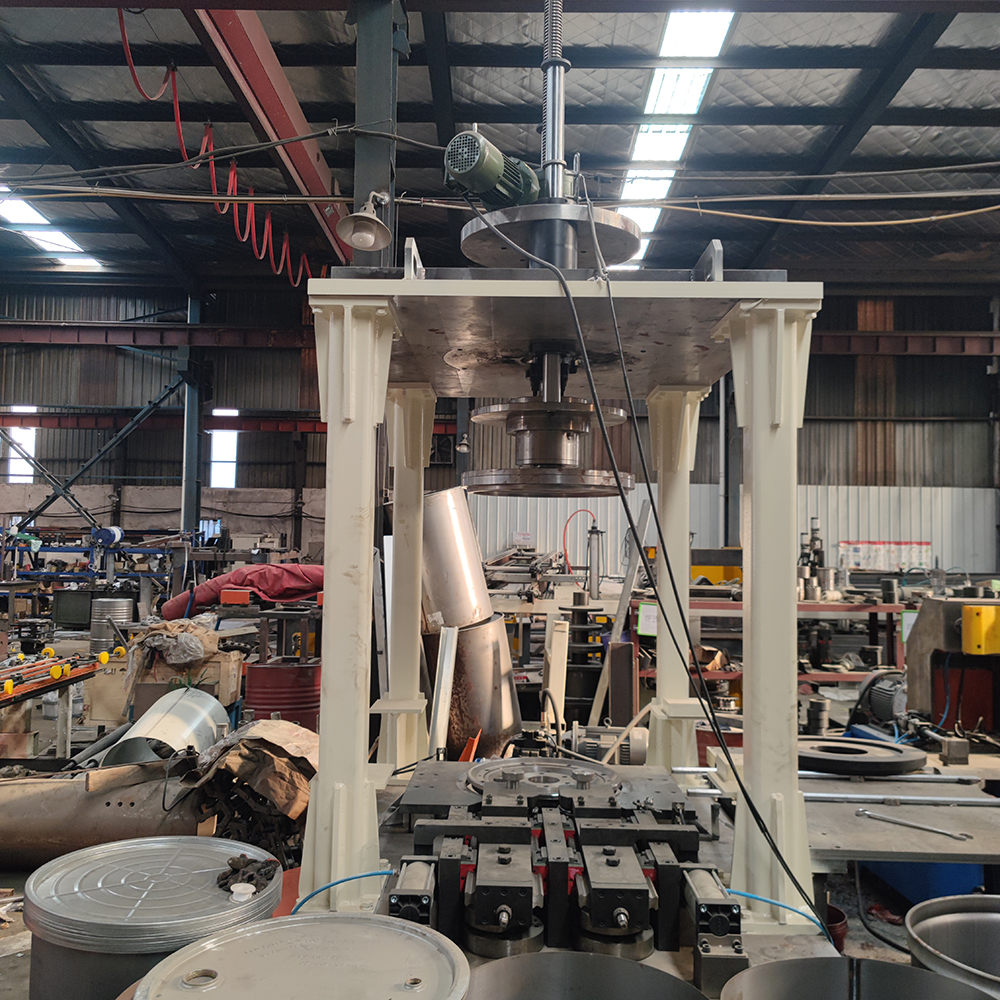

Vertical Seaming Machine
The drum body, lid and bottom are assembled and combined together to get finished conical drums. The bottom feeder is considered to feed the bottom cover in this machine.

1. Equipment speed: 6-7 PCS/min
2. Total weight: About 6000KG
3. Total power: 35KW
4. Air source pressure: 0.6MPA
5. Power supply: 380V 3P+N+PE
6. Conical drum dimension: Adjustable height: 850-1000mm, outer diameter of Top: 590mm, outer diameter of Bottom: 533mm
7. Motor type: China Guamao Guo Tai
8. Motor RPM: 1420
