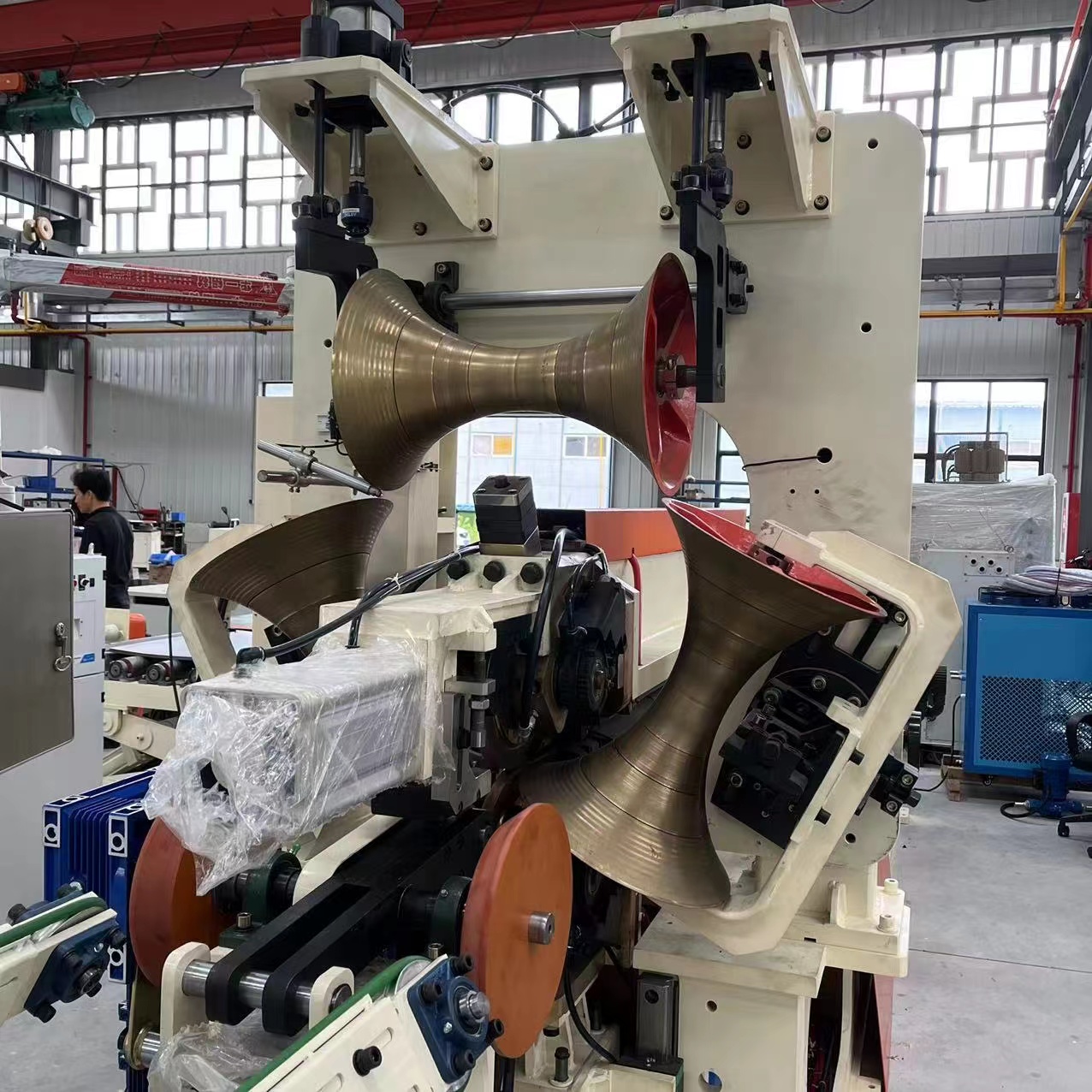

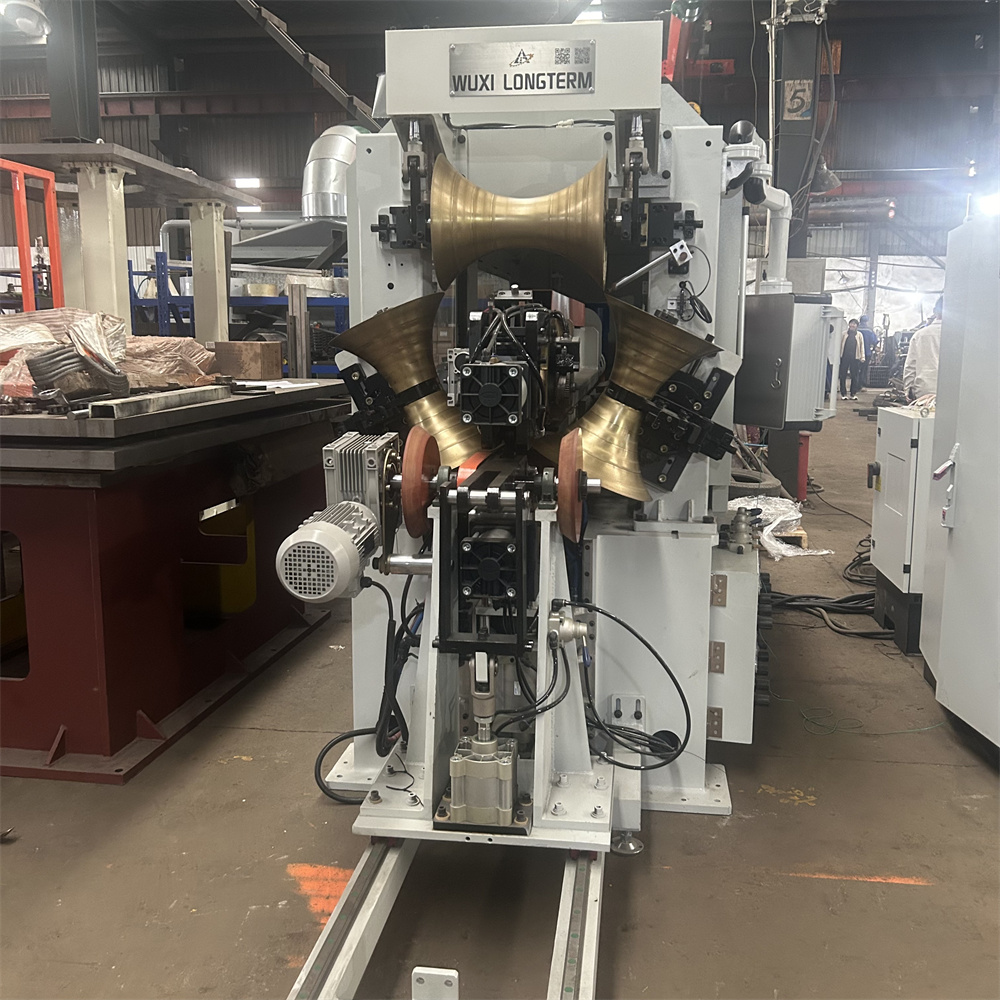

Fully Automatic Drum Body Welding Machine

  • Working efficiency: 360-420pcs per hour(6-7 pcs per minute)
  • Diameter range: 560/571mm, customized accept,
  • Length range: 900-1025mm
  • Material thickness range: 0.7-1.2mm.
  • Digital panel control, easy for operation.
  • Automatic electrode adjustment, Automatically loading/unloading the workpiece,
  • Automatically rolling and seam welding.

Description

Steel Drum Automatic Body Welding Machine

Steel Drum Automatic Spot Welding& Seam Welding Machine

EQUIPMENT INFORMATION:

Option1: Fully automatic welding line

Working efficiency: 360-420pcs per hour(6-7 pcs per minute)
Diameter range: 560/571mm, customized accept

Length range: 900-1025mm
Material thickness range: 0.7-1.2mm.

Digital panel control, easy for operation.
Automatic electrode adjustment, Automatically loading/unloading the workpiece, automatically rolling and seam welding.



Automatic resistant seam welding line



Option 2: Spot welding+ resistance seam welding machine– with automatic sheet loading/unloading device

Steel Drum Automatic Spot Welding& Seam Welding Machine

Model NO: HLT
Warranty: 1 Year
Lead Time: 3 Months After Receiving Deposit
Trademark: HLT
Transport Package: Standard Searworthy Package
Specification: ISO9001
Origin: Jiangsu, China
HS Code: 84369900
Steel Drum Automatic Spot Welding& Seam Welding Machine
Steel Drum Automatic Spot Welding& Seam Welding Machine
Steel Drum Automatic Spot Welding& Seam Welding Machine
Steel Drum Automatic Spot Welding& Seam Welding Machine
Option 3: Seam welding machine

Steel Drum Automatic Spot Welding& Seam Welding Machine

I.Function

The working principle of the welder are as follows:

The sheet is put between two welding rollers (the ends of the sheet will be lapped), with pressure, the welding rollers turn. With low voltage, big current and resistance radiation, the two short-cut poles generate heat which connect the working piece.

With special fixture, the FN1-200-5 seam welder can weld steel drum directly without spot-welding.

II.Feature

The welder has the following functions:

1. Adjust welding pressure evenly.

2. Stepless adjusting the welding speed

3. Freely adjust the current and heat

When upper and lower weld rollers wear out, adjust the hand wheel above the pneumatic cylinder to keep the original distance.



III. Technical Data

Description Unit Data
Rated capacity KVA 200
Rated voltage V 380
Rated current A 526
Frequency HZ 50
Continuous capacity KVA 140
Continuous current A 370
Duty cycle % 50
Secondary floating voltage V 6.8~7.6
Secondary voltage regulation 2
Welding speed m/min 0~7
Thickness of maximum weldment mm 2+2
Rated welding thickness of weldment mm 1.5+1.5
Extension elongation of electrode arm mm 1100
Adjustable top electrode strode mm 135
Maximum working pressure N 6000
Compressed air consumption m3/h 2.5
Air pressure MPa 0.5
Cooling water consumption L/h 4000
Motor power KW 1.5
Weight of welder kg 2700
External dimension (length × width × height) mm 4300×1550×2570



Company Introduction

Wuxi Longterm Machinery Technologies Co., Ltd is a professional manufacturer of steel drum,bitumen drum, open drum manufacturing machine with more than 30 years of history.

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling &gluing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.

Customers Visiting

Our Columbia customer is very interested in our welding machine

Steel Drum Automatic Spot Welding& Seam Welding Machine



The biggest steel drum manufacturer from Indonesia visited our factory

Steel Drum Automatic Spot Welding& Seam Welding Machine

Bangladesh customers from T.K group are confirming drum layout drawing
Seam Welding Machine for Steel Barrel
Packaging &Shipping

Packaging Details

Standard seaworthy packing

Steel Drum Automatic Spot Welding& Seam Welding Machine



Delivery Time: 3 months after receving your advance payment



FAQ

To enable me give you correct proposal for correct machines, please tell me following

details:

A: Technical drawing

B: Size of the steel drum you want to manufacture

c: What’s the capacity per shift/day?
