Flangers & curlers machine

  • Model NO: HLT
  • Product Name: Flangers & curlers machine
  • Warranty:1 Year
  • Delivery Time: 45 days after receving your advance payment
  • Transmission Type: Conveyor
  • Trademark: HLT
  • Transport Package: Standard Seaworthy Packaging
  • Specification: ISO9001
  • Origin: Jiangsu, China
  • HS Code: 730799000

Description

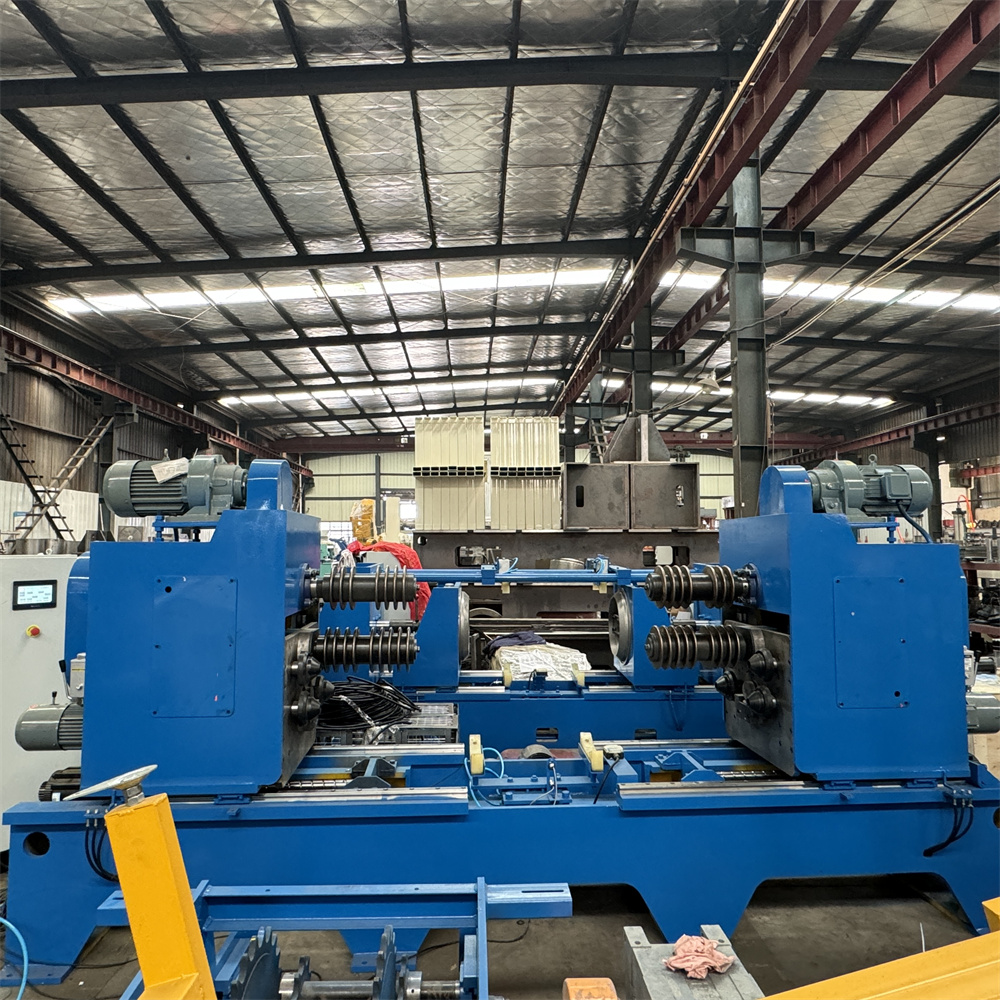

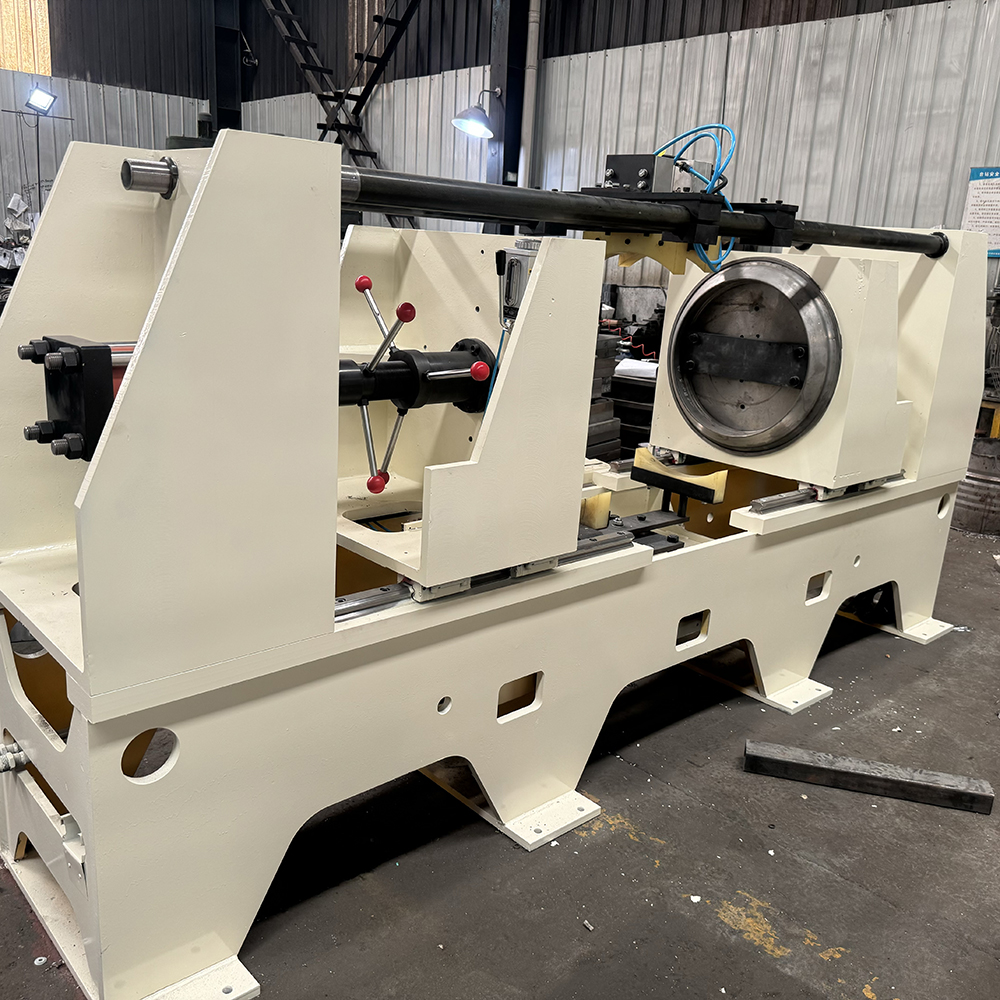

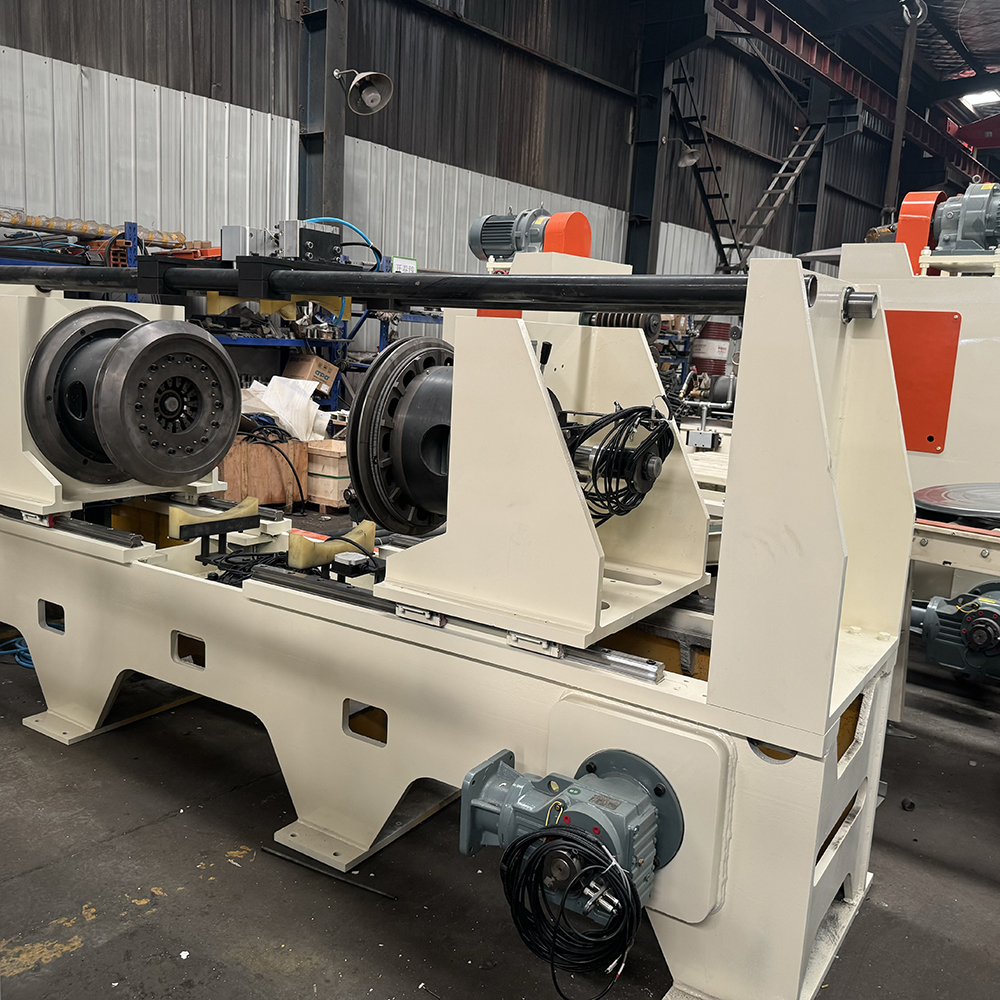

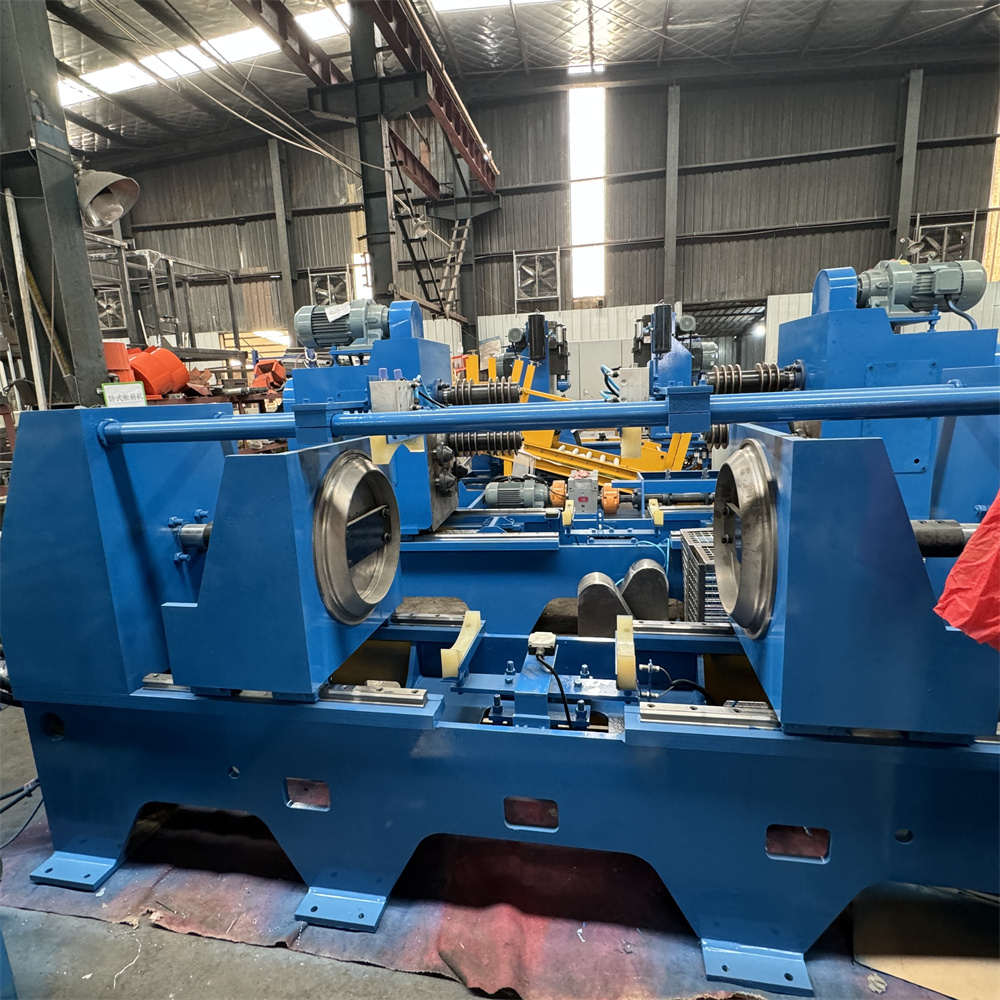

Drum body flanger and curler machine, speed: > 6pcs/min

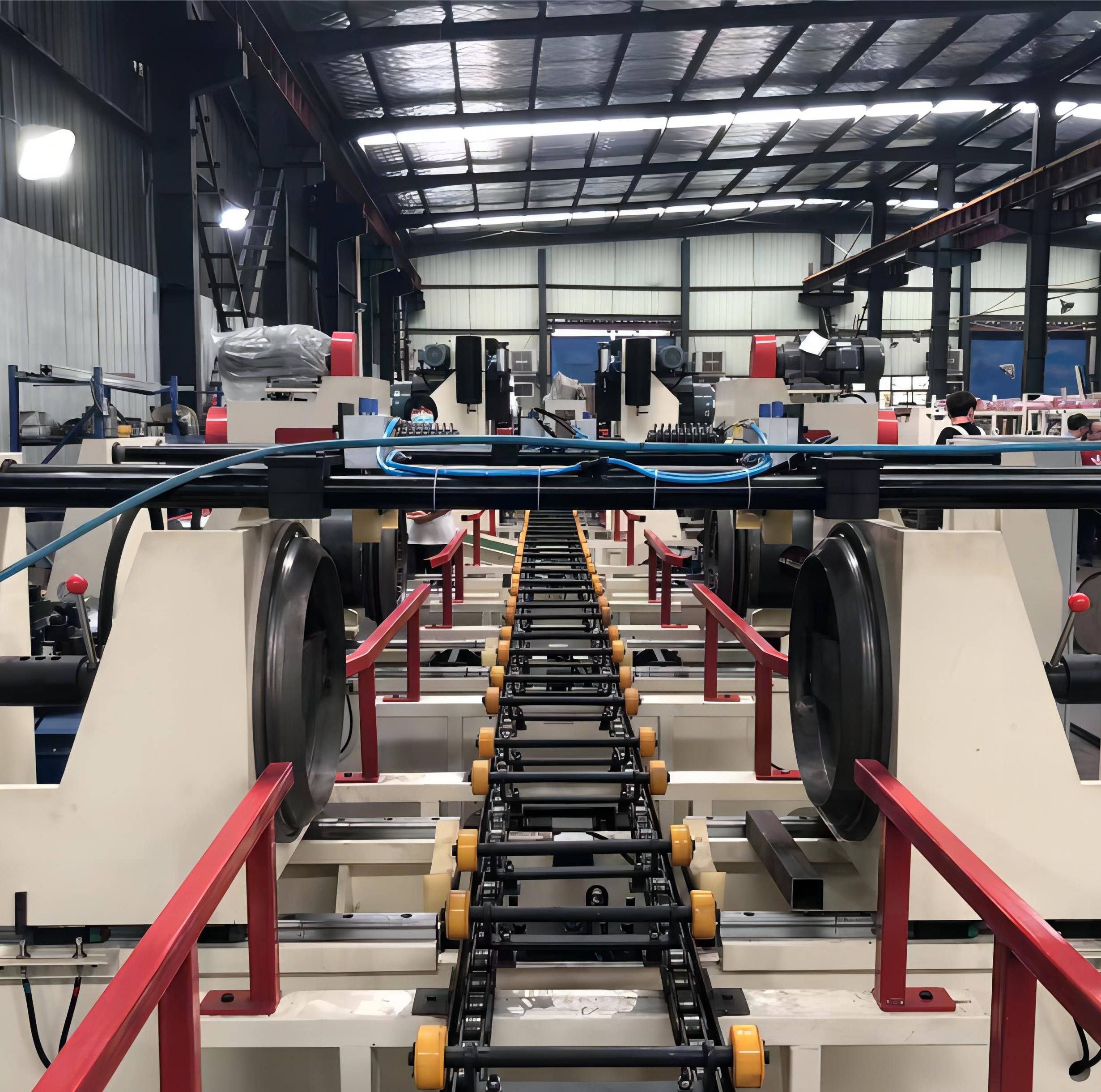

The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min

Flangers & Curlers Machine for Steel Barrel Manufacturing

Other Steel drum Manufacturing Equipments



1. Drum body straightening & blanking line(Cover straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control

Flangers & Curlers Machine for Steel Barrel Manufacturing

Flangers & Curlers Machine for Steel Barrel Manufacturing

2.Cover/bottom production line

2.1 160T punching machine – for cover/bottom cover blanking

One machine capacity: 10sets/min(10 pcs cover/10pcs bottom)
Cover blanking diameter. 650mm
Cover material width: 1250mm

Flangers & Curlers Machine for Steel Barrel Manufacturing

2.2 Automatic pre-curling &gluing ,  speed:10pcs/min;  10g /pcs glue
Automatic cover pre-curling machine

2.3(1) 80T punching machine-for hole punching machine

Speed: 10pcs/per minute

Flangers & Curlers Machine for Steel Barrel Manufacturing

3. Automatic sheet rolling & longitudinal seam welding machine

Type I: Fully Automatic Welding Line

Flangers & Curlers Machine for Steel Barrel Manufacturing

Type II: Semi-automatic welding machine

drum body spot welding machine

Type III:   a: Spot welding machine
b: Longitudinal Seam Welding Machine

Drum body spot welding machine

Flangers & Curlers Machine for Steel Barrel Manufacturing
4.W-beader& corrugator machine

Capacity: 6pcs/min, Power: 15KW

The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.

Flangers & Curlers Machine for Steel Barrel Manufacturing

5.Drum assembly&seaming machine, speed: >6pcs/min

Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min

Flangers & Curlers Machine for Steel Barrel Manufacturing



6.Painting booth

4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device



Flangers & Curlers Machine for Steel Barrel Manufacturing
6. Finished product
Flangers & Curlers Machine for Steel Barrel Manufacturing

Customer Visiting
Dubai customer visited our factory
Flangers & Curlers Machine for Steel Barrel Manufacturing
Our Columbia customer is very interested in our welding machine

Steel Drum Automatic Spot Welding& Seam Welding Machine



The biggest steel drum manufacturer from Indonesia visited our factory

Steel Drum Automatic Spot Welding& Seam Welding Machine



Packaging &Shipping

Packaging Details: Standard seaworthy packing

Delivery Time: 45 days after receving your advance payment

Our services : Engineers available to service machinery  overseas.
