Painting spray booth

Basic Information

  • Model NO: LTM
  • Product Name:Drum Painting Line
  • Model: HLT
  • Diameter: 571.5mm
  • Height:895mm
  • Thickness: 0.8-1.2mm
  • Size:210L, 208L, 55 Gallon
  • Power:80kw
  • No. of Color:Two Colors or Three Colors
  • Control:PLC
  • Dimension:4500*3400*2500mm
  • Trademark:HLT
  • Transport Package:Standard Seaworthy
  • Specification:SGS
  • Origin:China, Jiangsu
  • HS Code: 730799000

Description

Main parameters and pictures



Painting booth
4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device

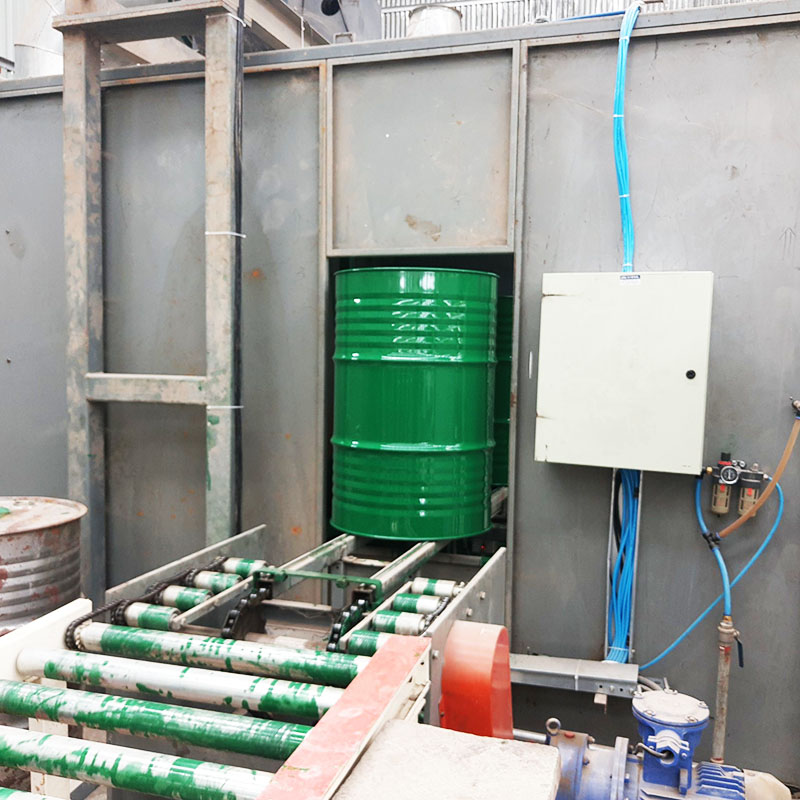

Steel Drum Three Color Painting Booth

Painting machine



Company Introduction

Wuxi Longterm Machinery Technologies Co., Ltd is a professional manufacturer of steel drum,bitumen drum, open drum manufacturing machine with more than

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling &gluing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.



Finished steel drum

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line



Flow Chart
Steel Barrel Painting Spray Booth for Standard Barrel Producing Line



Other Steel drum Manufacturing Equipments



1. Automatic sheet rolling & longitudinal seam welding machine

Type I: Fully Automatic Welding Line

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line

Type II: Semi-automatic welding machine
Steel Barrel Painting Spray Booth for Standard Barrel Producing Line
Type III:   a: Spot welding machine  b: Longitudinal Seam Welding Machine

Drum body spot welding machine



2.W-beader& corrugator machine

Capacity: 6pcs/min, Power: 15KW

The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line

3.Drum assembly&seaming machine, speed: >6pcs/min

Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line



Customer Visiting

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line

Steel Barrel Painting Spray Booth for Standard Barrel Producing Line



Steel Barrel Painting Spray Booth for Standard Barrel Producing Line



Our services: Engineers available to service machinery  overseas.

Drum machinery installation

installation in bangladesh



Packaging &Shipping

Packaging Details: Standard seaworthy packing

Delivery Time: 45 days after receving your advance payment.
