Silk printing machine



  • Model NO: HLT
  • Product Name: Silk printing machine
  • Speed: 7pcs/min
  • Warranty:1 Year
  • Delivery Time: 45 Days After Receving Your Advance Payment
  • Transmission Type: Conveyor
  • Trademark: HLT
  • Transport Package: Standard Seaworthy Packaging
  • Specification: ISO9001
  • Origin: Jiangsu, China
  • HS Code: 730799000

Description

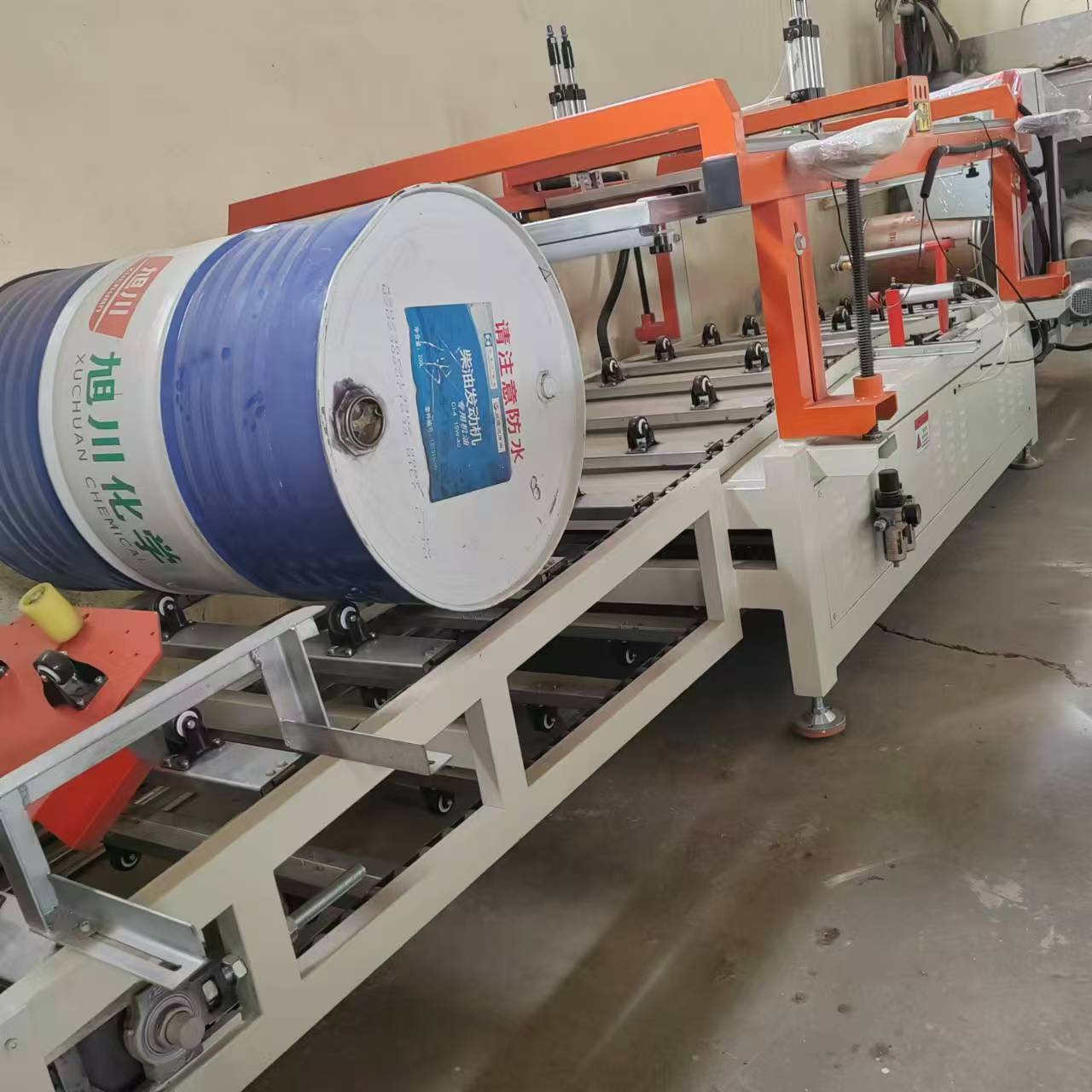

Steel Drum Silk Screen Printing Machine

Drum silk printing machine

Option 1: Silk Printing machine

  • The machine can print the up, middle and bottom of the drum at the same time.
  • Speed: 7pcs/min
  • Automatically loading and unloading the drum.
  • PLC controller, the electronics are from domestic famous brand.

Main brand for important parts:
1. Machine body is 45# weld assembly, which has been tempered overall to ensure the machine body will not be deformed.
2. PLC: Mitsubishi
3. Pneumatic components: Taiwan Airtac
4. Pneumatic clutch: Italy OPMI
5. Electrics: Chint Group, Delixi

Company Introduction

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling &gluing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &seaming machine,drum painting spray booth,drying oven,silk printing machine etc..

Due to professional engineer team, highly automatic, simple operation and reliable quality equipment, Our machineries have been exported to many countries, such as Qatar, Australia, Bangladesh, Vietnam, India, Ukraine, Mexico, etc..

We are longterm company, and we will provide Longterm Quality Machinery and Longterm cooperation for the customers from all over the world.

Option 2: heat transfer printing

Heat transfer printing

Main Parameters:

1.Fully automatic.

2.Power:3KW

3.Voltage: 380V,

4.Speed: 8~10 pcs/min



Other Steel drum Manufacturing Equipments

1. Drum body straightening & blanking line(Cover straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control

Steel Drum Silk Screen Printing Machine

2.Cover/bottom production line

2.1 160T punching machine – for cover/bottom cover blanking

One machine capacity: 10sets/min(10 pcs cover/10pcs bottom)
Cover blanking diameter. 650mm
Cover material width: 1250mm

Steel Drum Silk Screen Printing Machine

2.2 Automatic pre-curling &gluing ,  speed:10pcs/min;  10g /pcs glue

Automatic cover pre-curling machine

2.3(1) 80T punching machine-for hole punching machine

Speed: 10pcs/per minute

hole punching and locking

3. Automatic sheet rolling & longitudinal seam welding machine

Type I: Fully Automatic Welding Line

Steel Drum Silk Screen Printing Machine

Type II: Semi-automatic welding machine
Steel Drum Silk Screen Printing Machine
Type III:   a: Spot welding machine
b: Longitudinal Seam Welding Machine

Steel Drum Silk Screen Printing Machine

4.Drum body flanger and curler machine, speed: > 6pcs/min

The drum will be loaded to the machine automatically through conveyor, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the drum body will be flanged and expanded, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
Machine size: 3800*710*1600mm
Machine weight: 5000kgs
Power: 18KW
Capacity:>6pcs/min
Steel Drum Silk Screen Printing Machine

5.W-beader& corrugator machine

Capacity: 6pcs/min, Power: 15KW

The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.

Steel Drum Silk Screen Printing Machine

6.Drum assembly&seaming machine, speed: >6pcs/min

Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min

Steel Drum Silk Screen Printing Machine

7. Spray Painting booth

4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device

Steel Drum Silk Screen Printing Machine

 Customer Visiting

Steel Drum Silk Screen Printing Machine



Our service: Engineers available to service machinery overseas.

Engineer team were installing machine in Bangladesh.

installation

installation in bangladesh



Packaging &Shipping

Packaging Details: Standard seaworthy packing

Delivery Time: 3 months after receving your advance payment



FAQ

To enable me give you correct proposal for correct machines, please tell me following details:

A: Technical drawing of steel drum
B: Size of the steel drum you want to manufacture
C: What’s the capacity per shift/day?
