Description
Product Description

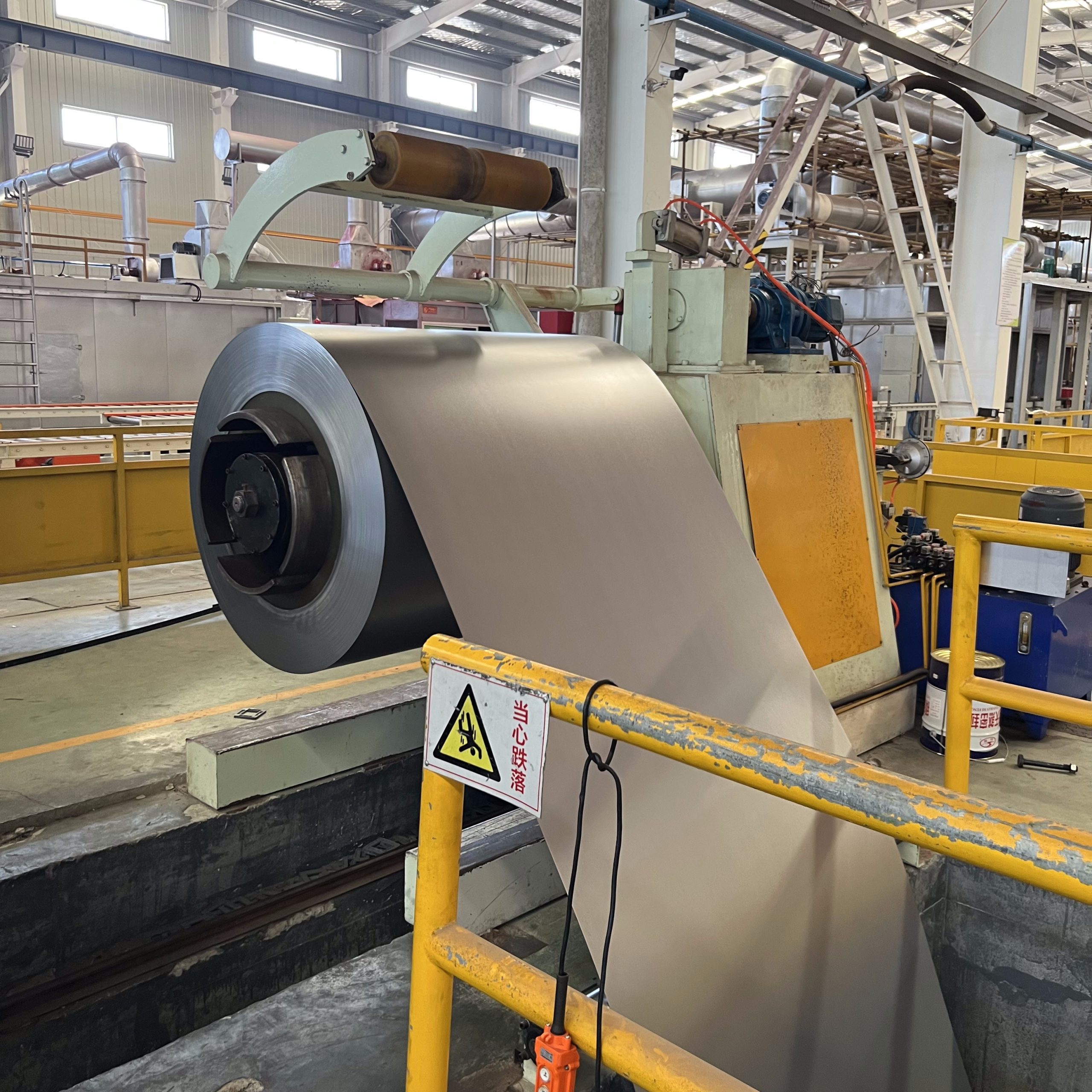

1. Drum body straightening & blanking line(Cover straightening line)
Sheet thickness:0.8~1.2mm, Sheet coil width:660~1250mm
Max coil diameter:1650mm, Coil ID:φ508/φ610
Coil weight≤10T, Decoiler speed: 5-50m/min
Mitsubishi PLC, Servo motor driving control
2.Cover/bottom production line
2.1 160T punching machine – for cover/bottom cover blanking
One machine capacity: 10sets/min(10 pcs cover/10pcs bottom)
Cover blanking diameter. 650mm
Cover material width: 1250mm
Other Steel drum Manufacturing Equipments
1. 80T punching machine-for hole punching machine
Speed: 10pcs/per minute
2. Automatic sheet rolling & longitudinal seam welding machine
Type I: Fully Automatic Welding Line
Type II: Semi-automatic welding machine
Type III: a: Spot welding machine
b: Longitudinal Seam Welding Machine
3.W-beader& corrugator machine
Capacity: 6pcs/min, Power: 15KW
The conveyor will automatically load in the drum body, the machine will automatically check the drum body and lift it to a suitable places, then the carriage plate will move forward, the reinforced ring roller will lift up and press on the drum body, then automatically lift down, the carriage plate will automatically move back(when the carriage plate is back, the machine decompression will be loading state, which will save energy). The drum body will go down and be unloaded on the conveyor.
4.Drum assembly&seaming machine, speed: >6pcs/min
Manually put the cap on the assembly machine, the conveyor will load on the cap and drum body into the machine and assembly together. The assembly machine adopts double motors, separate driving, double main spindles. The carriage plate adopts imported linear guided with high accuracy and small friction.
Machine size: 3800*900*1700mm
Machine weight: 9000kgs
Power: 55KW
Capacity:>6pcs/min
5.Spray Painting booth
4 sets pray pump(Chongqing Changjiang)
13 sets pray nozzle(American Nordson)
4500*3400*2500mm painting booth
Stainless steel sink and paint pipe line
Edge curl and paint repair device
Three-jaw painting rotation clamping device
The biggest steel drum manufacturer from Indonesia visited our factory
Packaging &Shipping
Packaging Details: Standard seaworthy packing
Delivery Time: 2 months after receving your advance payment
Our services : Engineers available to service machinery overseas.
FAQ
To enable me give you correct proposal for correct machines, please tell me following details:
A: Technical drawing
B: Size of the steel drum you want to manufacture
C: What’s the capacity per shift/day?
