Full Automatic 20L Conical Pail Production Line

Category:

Description

10-25L semi-auto pail or enclosed can production line

  • Auto slitter machine

Max sheet size—–1130*1130mm(1130*1050mm)
Minimum sheet size—400*400mm
Production——————-55pcs/min
Sheet thickness———-0.15-0.5mm
Max sheet pieces——–6pieces
Blade quantity——–4 pairs
Blade material——alloy steel
Alloy steel hardness——- HRA89°
Alloy steel material—- pz30
With 2 pcs sheet detector
Power—–4.5KW
Machine dimension—6000*1600*1800mm
Weight———————–about 2500KGS
Cutting machine shaft diameter——-100mm
Include a set of blade sharpener

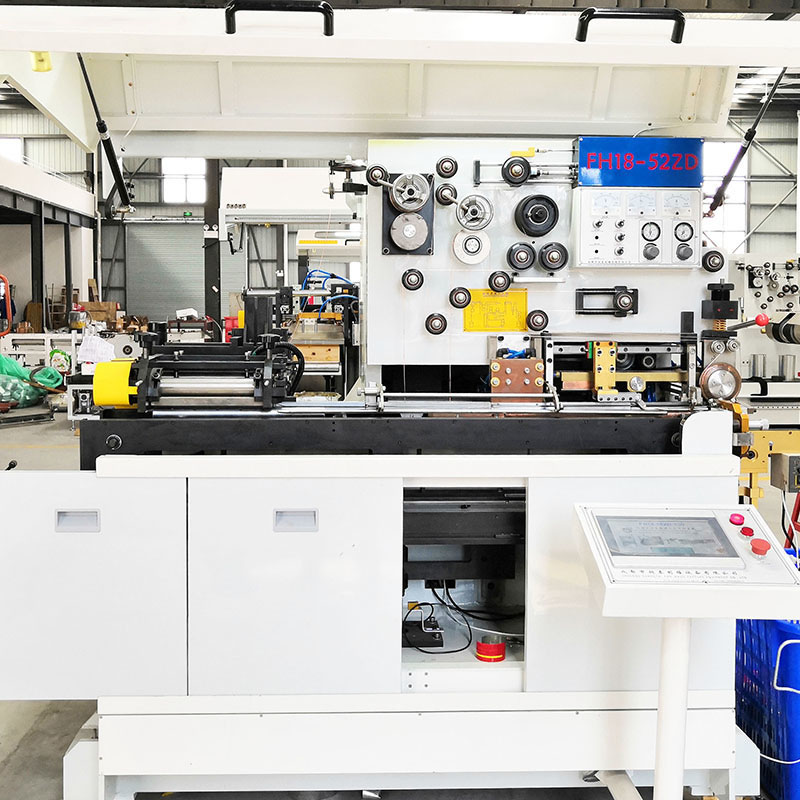

  • Automatic big can body seam welding machine

Power——–3N380V/50Hz 37KVA
Welding speed————6-18m/min
Capacity ————-12-35pcs/min
Welding frequency—100-280HZ
Diameter Range——–Φ220-Φ286mm
Height Range———–180-483mm
Overlap————–0.4-1.2mm
Thickness——————0.2—0.4mm
Copper wire——————–Φ1.38-1.5mm
Compressor air——-0.5MPa 900L/min
Cooling water——0.3Mpa 8-10L/min
Net Weight———————–2000 kg
Dimension————–2100*1650*1900 mm

  • Automatic mechanical open &closed drum combination machine

production capacity—————27-28pcs/min
Thickness range——- Max. 0.5mm
diameter range———210-330mm
height range————-230-500mm
dimension———8000×1300 x2700mm
weight———————–6500kg
note:
curling ———7mm
Main electric parts brand
PLC————OMRON
Servo Motor—-DELTA
Air Contact——-Schneider
Time ralay——IDEC
Air cylinder—-AIRTAC
